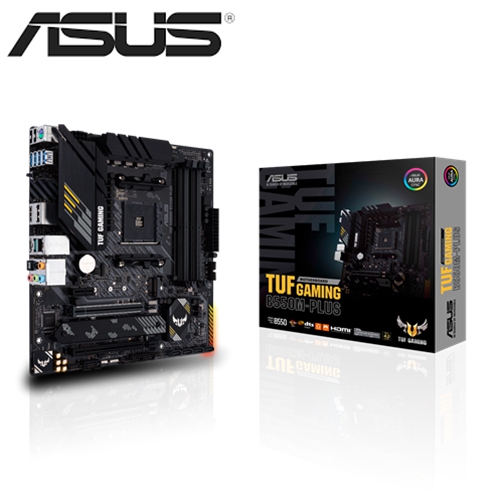

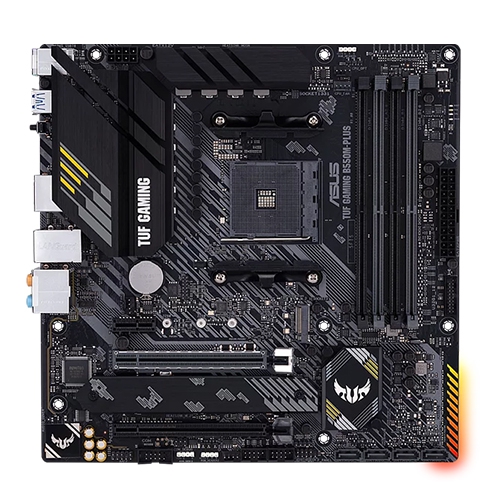

華碩 TUF GAMING B550M-PLUS(M-ATX/1H1P/RTL8125B/註五年保)
產品介紹
華碩 TUF GAMING B550M-PLUS(M-ATX/1H1P/RTL8125B/註五年保)
產品規格
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ 處理器 * |
| 晶片組 | AMD B550 |
| 記憶體 | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, 最高可支援到128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/ 3200/3000/2800/2666/2400/2133 MHz 無緩衝區 記憶體 * Next Generation AMD Ryzen PRO Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz 無緩衝區 Memory * 雙通道 記憶體架構 ECC Memory (ECC mode) support varies by CPU. *有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 www.asus.com 網站或本使用手冊。 |
| 顯示晶片 | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) |
| 多GPU支援 | Supports AMD 2-Way CrossFireX Technology |
| 擴充槽 | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 * Support PCIe bifurcation for RAID on CPU function. |
| 資料儲存應用 | 總共支援 2 x M.2 插槽和 4 x SATA 6Gb/s 連接埠 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s埠, 支援Raid 0, 1, 10 |
| 區域網路 | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
| 音效 | Realtek ALC S1200A 7.1 Surround Sound 高傳真音效 CODEC - 支援 : Jack-detection, 插頭偵測, 多路音頻輸出輸入, 前面板插孔指定功能 音訊特色 : - 光纖 S/PDIF 輸出埠位於背板 - Exclusive DTS Custom for GAMING Headsets. - 音訊外蓋 - Audio Shielding - Dedicated audio PCB layers - 優質的日本音訊電容 |
| USB連接埠 | 背面 USB 連接埠 ( 共 8 個 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C™) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) 正面 USB 連接埠 ( 共 6 個 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| 獨特功能 | ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header |
| 後面板輸出端子 | 1 x PS/2 鍵盤/滑鼠連接埠 1 x DisplayPort 1 x HDMI 1 x LAN (2.5G) 連接埠 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C™) 4 x USB 3.2 Gen 1 (藍色) Type-A 2 x USB 2.0 1 x 光纖 S/PDIF 輸出 5 x 音訊插孔 1 x USB BIOS Flashback™ Button(s) |
| 內建 I/O 連接孔 | 1 x CPU 風扇接頭 1 x CPU OPT Fan connector(s) 2 x 機殼風扇接頭 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s 接頭 1 x 24-pin EATX 電源接頭 1 x 8-pin EATX 12V Power connectors 1 x 前面板音訊接頭 (AAFP) 1 x Clear CMOS 跳線 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| 配件 | 使用者手冊 I/O 擋板 2 x Serial ATA 6.0Gb/s 纜線 1 x TUF Certification 卡 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| 管理能力 | WOL by PXE |
| 作業系統 | Windows® 10 64-bit |
| 主機板尺寸 | mATX 主機板尺寸 9.6 吋 x 9.6 吋 ( 24.4 公分 x 24.4 公分 ) |
| 商品資訊若有誤植，以原廠公佈為主 | |
